| Company |
GwellKorea Co.,Ltd |
Address |
304HO,64YEONSUWON-RO,POST-BI CENTER,DANWON-GU,
ANSAN-SI,GYEONGGIDO.KOREA 425-849 |
Home page |
http://www.gwellkorea.com |
| TEL |
(Tel) +82-31-493-0896 / (FAX) +82-31-493-0898 |
e-mail |
gwell@gwellkorea.com |
| Product Information |
Packing Information |
| Item No |
LuvA-SAP XG / Made in Korea |
Packing |
coloured box |
| FOB Port |
Pusan or Inchun, Korea |
Carton |
L(cm) |
W(cm) |
H(cm) |
| Unit-Price |
|
Carton Size |
36.5 |
59.5 |
52.5 |
| Remarks(Filter) |
Anion G-Filter (1)+ e-Nano filter(2) |
Carton CBM |
0.114 CBM |
| Product / Packing Siz |
260X160X260mm / 285mmX170mmX320mm |
Q'TY/Inner Box |
1 pc |
| Product Net Weight |
1.8kg |
Q'TY/CTN |
6 pcs |
| MOQ |
1,000K |
G.W |
12.5kg |
N.W |
11.4kg |
| Lead Time |
Within 30days after receipt of L/C at sight or T/T |
Container Q'TY(pcs) |
20 FT |
40FT |
|
| Product Color |
Available to choice color when purchase by conatiner |
1,560 |
3,120 |
|
| Products Design |
Function, Feature & Efficacy of Each filter |
 |
 |
| Available to choice color |
| Specification |
| Voltage |
In/Out put |
AC 100V-220V, 50-60HzDC / 12V, 1A |
| Power Consumption |
3.6 W |
| Area coverage |
Up to 20㎡ (54㎥=4.5X4.5X2.7m) |
| Material |
Main Body |
ABS, Silicon |
| Filter |
Anion G-Filter(37X17X18mm/1pc) PCB, ABS |
| e-Nano Filter(Ø150X25mm/1pc) / PP |
| Composition |
Main Body, 2type of Filters, Adapter, Manual |
| Size/Weight |
260X160X260mm / 1.8Kg |
| Certification |
Patent (3) / CE, UL, PSE, CCC, CB, KC, etc. |
Test Report |
Performance(1), Deodorization(1), etc(2) |
| Feature & Efficacy |
| ■ Small but High Performance 3 in 1 Function : Air Purification (Remove dust) / Sterilization / Deodorization |
| 1) The products have been export and proven excellent performance to Hong Kong, China, France, Spain, USA, Thailand, Japan, Kuwait .etc. |

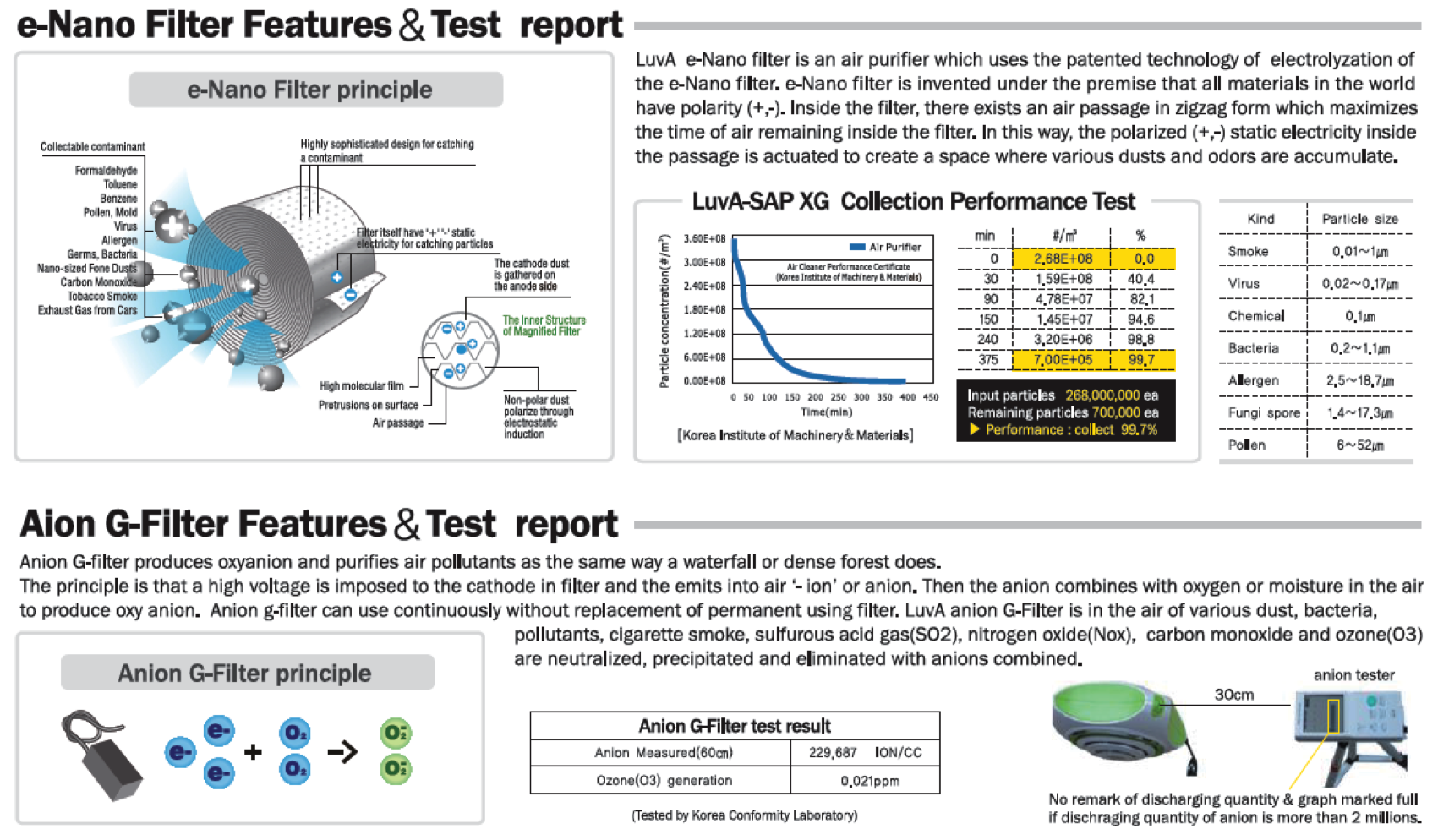

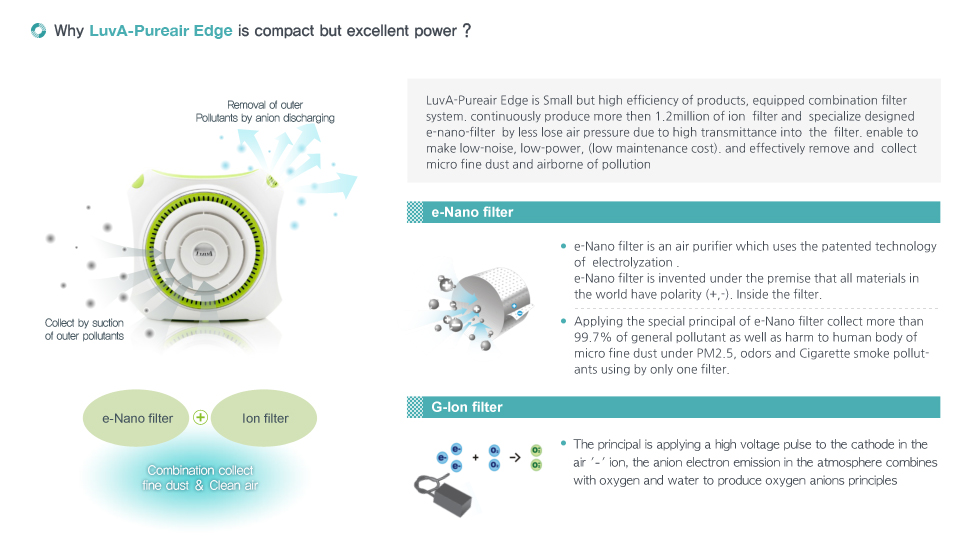

2) The feature of e-Nano filter is capturing pollutants. The feature of G-filter is removing pollutants by emitting Anion into air. Optimize the feature
of two different methods of air purification filters, operate efficiently together dust absorption with emission, so that is why LuvA is a small but have
excellent performance. |
3) Applying the special principal of e-Nano filter collect more than 99.7% of general pollutant as well as harm to human body of micro fine dust under 0.3㎛.
- Collect Micro fine dust under PM2.5, Cigarette smoke.
- Excellence for reducing density of indoor air pollutants such as micro fine dust under 0.1 ㎛, volatile organic compounds (VOCs), formaldehyde (HCHO),
Toluen , nitrogen oxides (NOX), sulfur oxides (SOX).
- Collect to a major cause of flu, insect secretions, pollen, mold, bacteria and the sick building syndrome, rhinitis, asthma, allergic. |
4) Performs triple functions with one filter collecting dust, smell and bacteria at the same time.
General air purifier uses 3 to 7 of filters for purifying air. LuvA uses only one filter to capture and collect odors and various contamination particles
(bacteria carbon monoxide), pollen, emission, volatile organic compounds, etc) and Germs. |
| 5) Silence, Easy to use : LuvA noise is around 26.2dB, so it is silence. And it is easy to exchange filter. |
LuvA-SAP XG Products Color |
| 6) Anion G-filter can use continuously without replacement
: Minimum amount of ozone (0.021ppm,Limits level :0.05ppm), and emits of ion more than 2milion
per second. |
Green |
Orange |
Gray |
7) Filter is reusable, so low maintenance cost
: e-Nano filter can be re-use after 3~6month wash on the water and thoroughly dry.
The maintenance cost of product is low, cause using by DC12V, 500mA with minimum power
consumption. |
8) Designed easy to check by consumer self for collect pollutants that you can verify the reliability of
the products. |
