| Company |
GwellKorea Co.,Ltd |
Address |
304HO, 64YEONSUWON-RO,POST-BI CENTER,ANSAN-SI,
DANWON-GU,GYEONGGI-DO KOREA.425-849 |
Home page |
http://www.gwellkorea.com |
| TEL |
(Tel) +82-31-493-0896 / (Mobile) +82-10-5511-3846 |
e-mail |
gwell@gwellkorea.com |
| Product Information |
Packing Information |
| Item No |
LuvA-PUREAIR / Made in Korea |
Packing |
coloured box |
| FOB Port |
Korea |
Carton |
L(cm) |
W(cm) |
H(cm) |
| Unit-Price |
|
Carton Size |
40 |
40 |
59 |
| Remarks(Filter) |
E-Nano filter(1) + UPI-Hades filter(1) + Carbon filter(1) |
Carton CBM |
0.10 CBM |
| Product / Packing Siz |
193X193X254mm / 200mmX200mmX265mm |
Q'TY/Inner Box |
1 pc |
| Product Net Weight |
1.8kg |
Q'TY/CTN |
6 pcs |
| MOQ |
1,000 pcs |
G.W |
16.5kg |
N.W |
14.4kg |
| Lead Time |
Within 30days after receipt of L/C at sight or T/T |
Container Q'TY(pcs) |
20 FT |
40FT |
|
| Product Color |
Available to choice color when purchase by conatiner |
2,154 |
4,350 |
|
| Function of Product |
Function, Feature & Efficacy of Each filter ( 4in1 function) |
 |
■ Aromatherapy Functions |
 |
▶ Optional Consumer Use |
| ○ Advantage that take a good sleep and stability. |

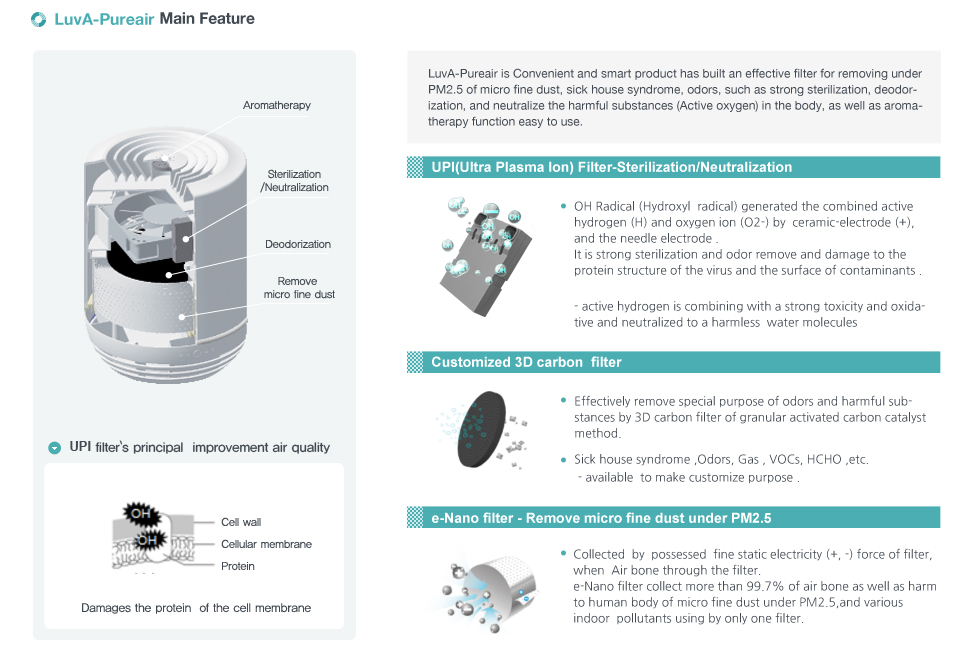

■ UPI(Ultra Plasma Ion)-Hades Filter
: Sterilization / Deodorization/ Neutralization |
 |
▶ When Nano Plasma discharge on the electrode surface of atoms ,
which generated Active hydrogen (H +) and oxygen ions .
① Oxygen ions + Active hydrogen (H+) = Generated OH Radical (Harmless to Human body)
→ Powerful sterilization, deodorizing effect (viruses, bacteria, fungi, etc.)
② Active hydrogen (H+) + Active oxygen = Neutralized to water molecules. (Harmless to Human body)
→ Neutralized water molecules are fly into the air |
○ Powerful sterilization, deodorization, Neutralize harmful substance (Active oxygen) effect :
Consistently emission more than1.2m/cc of Active hydrogen & Oxygen ion |
| Available to choice color |
■ e-Nano Filter
: : Collect fine dust under PM 2.5 - Odors / Bacteria / smoke |
| Specification |
| Voltage |
In/Out put |
AC 100V-220V, 50-60HzDC / 12V, 1A |
 |
▶ e-Nano filter is invented under the premise that all materials in the world have polarity (+,-).
Inside the filter, there exists an air passage in zigzag form which maximizes the time of air
remaining insid the filter. In this way, the polarized (+,-) stati electricity inside the passage
is actuated to create a space where various dusts and odors are accumulate. |
| Power Consumption |
4.8W |
| Area coverage |
Up to 36㎡ (97㎥=6X6X2.7m) |
| Material |
Main Body |
ABS, PP, Silicon |
○ Applying the special principal of e-Nano filter collect more than 99% of general pollutant
as well as harm to human body of micro fine dust under PM2.5, odors, virus, and various
indoor pollutants using by only one filter.
Specially, excellence for reducing density of indoor air pollutants such as micro fine dust
under 0.1 ㎛, volatile organic compounds (VOCs), formaldehyde (HCHO) and Cigarette smoke. |

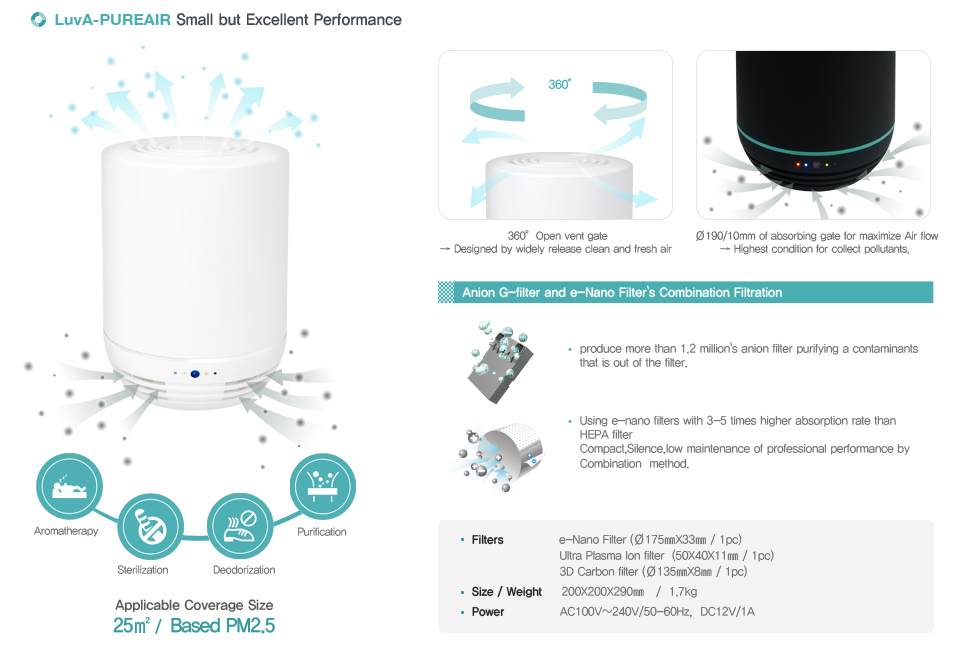

| Filter |
UPI-Hades Filter(50X40X11mm/1pc) / PCB, PP |
| e-Nano Filter(Ø164X25mm/1pc) / PP |
| 3D Carbon filter(Ø135X8mm/1pc) / Carbon |
■ Customized 3D Carbon Filter
: Customized Deodorization |
| Composition |
Main Body, 3type of Filters, Adapter, Manual |
| Size/Weight |
260X160X260mm / 1.8Kg |
 |
▶ Granular activated carbon catalyst in the process created a new processing method of 3D
shape filter, it effectively deodorize to offensive odors and harmful substances. |
| Certification |
Patent (2) / CE, UL, PSE, CCC, KC, etc. |

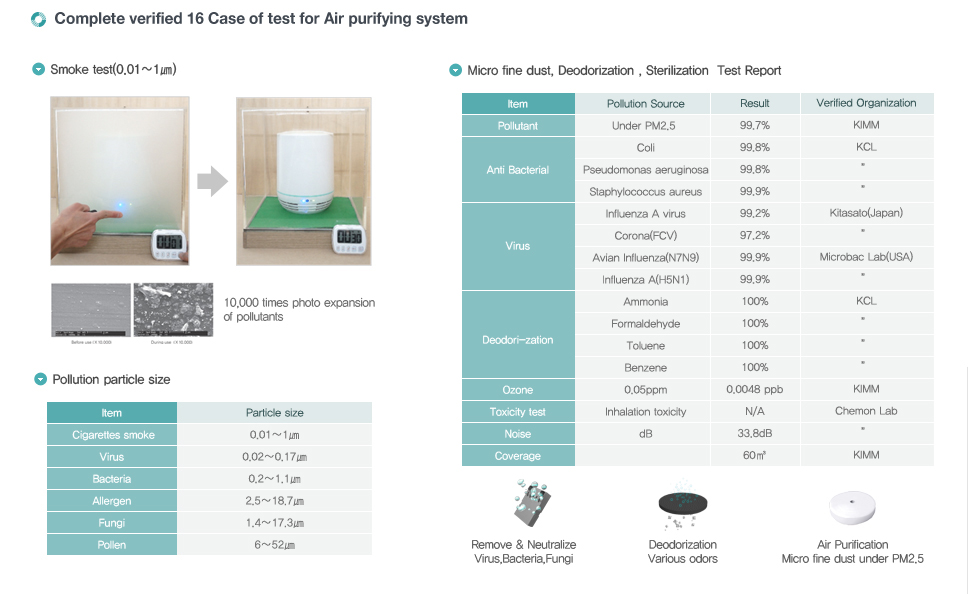

Test Report
(Present Jul,2013) |
sterilization(3), Deodorization(4), Virus(2), etc(2) |
○ To remove aldehydes mainly on sick building syndrome such as smell of formaldehyde and volatile,
cigarettes containing various odor(acetic acid), general indoor's smell. |

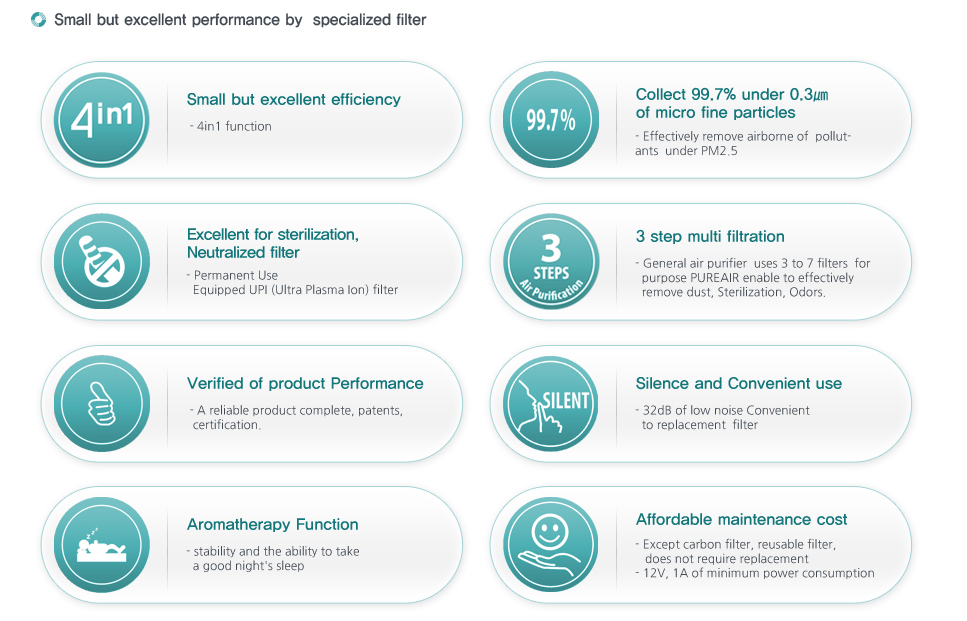

| Feature & Efficacy |

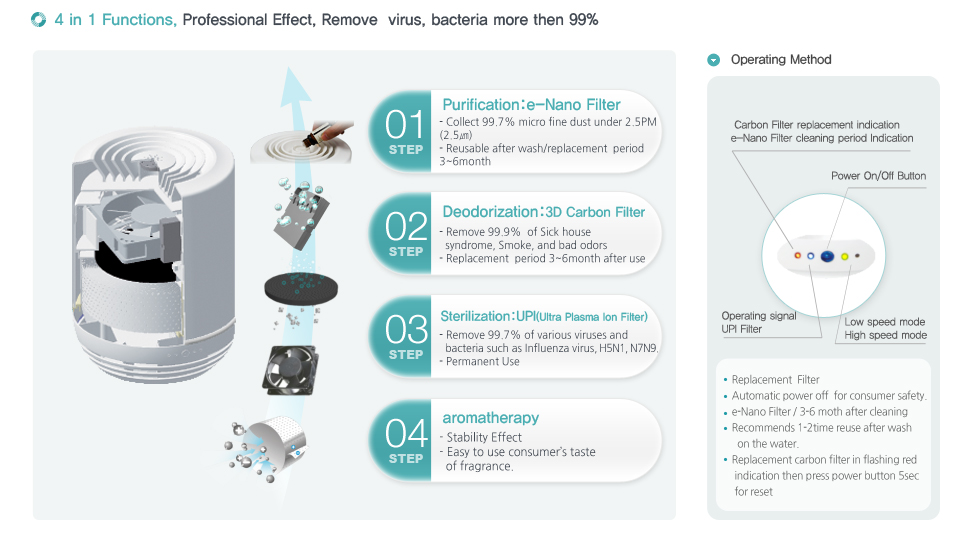

| ■ Small but High Performance 4 in 1 Function : Air Purification (Remove dust) / Sterilization, Deodorization, Neutralization of harmful substance/ Removed Odors / Aromathrapy |
1) UPI-Hades Filter Generated Hydroxyl Radical(OH Radical) = Active hydrogen (H+)+Oxyzen Ion (O2-) / Powerful effect of 99.99% to sterilization, deodorization,neutralization of harmful sustance.
- OH Radical is non-toxic natural substance that harmless to human body, and can be chemically removed, sterilization, disinfection of virus, bacteria, fungi and all of contaminants.
(more than 2000 times effect of Ozone, 180 times faster than the sun's UV rays oxidation rate)
- Effectively sterilizing various bacteria in the air (within 5~10 second), food poisoning bacteria : E. coli bacteria / mold (fungus) / bacteria / Salmonella / Staphylococcus aureus / Vibrio / Legionella /
SARS / bird flu / O-157 ,ets. effect to almost of all fungal diseases.
- The reacts with pollutants in the air and contaminants by restoration to safe water(H2O).
|
2) Applying the special principal of e-Nano filter collect more than 99.7% of general pollutant as well as harm to human body of micro fine dust under 0.3㎛.
- Collect Micro fine dust under PM2.5, Cigarette smoke.
- Excellence for reducing density of indoor air pollutants such as micro fine dust under 0.1 ㎛, volatile organic compounds (VOCs), formaldehyde (HCHO), Toluen, nitrogen oxides (NOX), sulfur oxides (SOX).
- Collect to a major cause of flu, insect secretions, pollen, mold, bacteria and the sick building syndrome, rhinitis, asthma, allergic. |
3) Customized 3D Carbon Filter collect and effectively deodorize to offensive odors and harmful substances
- To remove aldehydes mainly on sick building syndrome such as smell of formaldehyde and volatile.
- To remove mainly for cigarettes containing various odor (smell of acetic acid )
- Remove general indoor's smell such as Ammonia. |
| 4) Aromatherapy function for consumers needs of stability and good sleep. |
LuvA-PUREAIR Products Color |
| 5) The unit operates high efficiency and very low noise of 36dB for general and sleeping use. |
BLACK |
WHITE |
| 6) e-Nano filter can be re-use after 3~6month wash on the water and thoroughly dry. |
| 7) Equipped do not need permanent replacement UPI(Ultra Plasma Ion)-Hades Filter |
| 8) Equipped LED signal lamp for indicate filter cleaning time. |
| 9) Designed for small space of optimal performance effects and affordable price with higy performance. |
| 10) Use of DC12V, 1A electrical power of stability and low maintenance costs by reuse filter. |
| 11) Patent and more than 10 case of Certificate and verification of product reliability and excellent performance. |
